Products
About Our Products
Standard Dimension

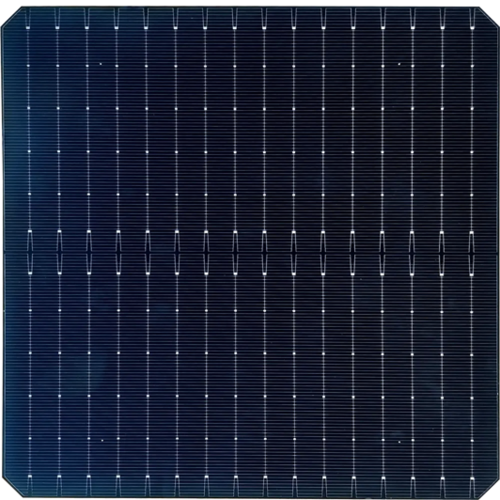

183.75mm*182mm 16BB
Bifacial N-Type Solar Cell
Size：183.75mm x 182mm ± 0.25mm (Diameter 257 ± 0.25mm)
Thickness：120 ± 20μm
210mm*182mm 16BB
Bifacial N-Type Solar Cell
Size：210mm x 182mm ± 0.25mm (Diameter 272 ± 0.25mm)
Thickness：120 ± 20μm

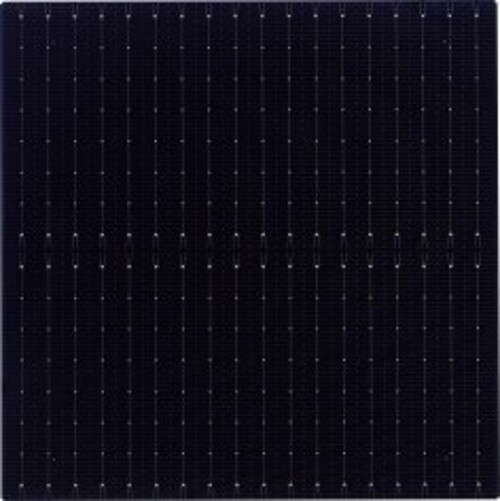

210mm*210mm 18BB
Bifacial N-Type Solar Cell
Size：210mm x 210mm ± 0.25mm (Diameter 295 ± 0.25mm)
Thickness：130 ± 20μm
No Customer Left Behind
We also offer customised dimensions to meet the specific requirements of our clients.
Key Benefits
Enhanced
Durability
Optimised Performance
Reliable
Construction
Temperature Resilience
Solar Module Introduction

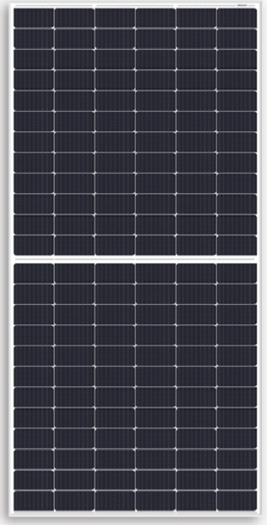

SMBB N-type Solar Module
- M10/72 Dual Glass Module 600+W
- M10/72 Single Glass Module 605W
Quality Assurance
12 Years Product Warranty
Specification Overview | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CTM | 98%–100%（Depends on the module design)
| |||||||||||||||||||||||
Peel Strength | ||||||||||||||||||||||||
String Rework Rate
| < 3%
| |||||||||||||||||||||||
Cell Crack Rate | < 0.3%
| |||||||||||||||||||||||
PID | Degradation less than 2% after 85℃/ 85RH 96H
| |||||||||||||||||||||||
LID
| Degradation less than 1% after 60 Kwh
| |||||||||||||||||||||||
LETID
| Degradation less 1.5% after 300H
| |||||||||||||||||||||||
